New
Gamesa Electric
Proteus PV Stations

High-power
PV Inverter family

Maximum power
with large flexibility
for best LCoE

Gamesa Electric Proteus PV Stations

Plug & Play MV Solutions

better

Better LCoE

Compact design that achieves a high power density obtaining overall cost reduction by using less PV station units per project.

Design with best-in-class components that guarantees less probability of failure and therefore less operation cost (materials and workforce).

Market leading inverter efficiency of 99.45%.

reduction

CAPEX reduction

Less units needed per project, which results in lower equipment cost.

Reduced costs of transportation, offloading and site preparation.

Solution delivered preassembled, configured and tested, reducing on-site labour cost.

puzzle

Flexibility

Wide range of configurations with outputs from 3800 to 9400 kVA and IEC & UL certifications.

Bidirectional inverter that allows PV Station to be configured as part of a Battery Energy Storage System (BESS) in DC and AC coupling topologies.

Customization at PV station subsystems, such as MV transformer, auxiliaries’ system and DC input configuration, according to customer necessities.

link

Plug & play

Fully assembled and tested MV solution.

Quick installation on field, reducing installation time and costs.

Easy to support and mantain.

Successfully operating in extreme environments

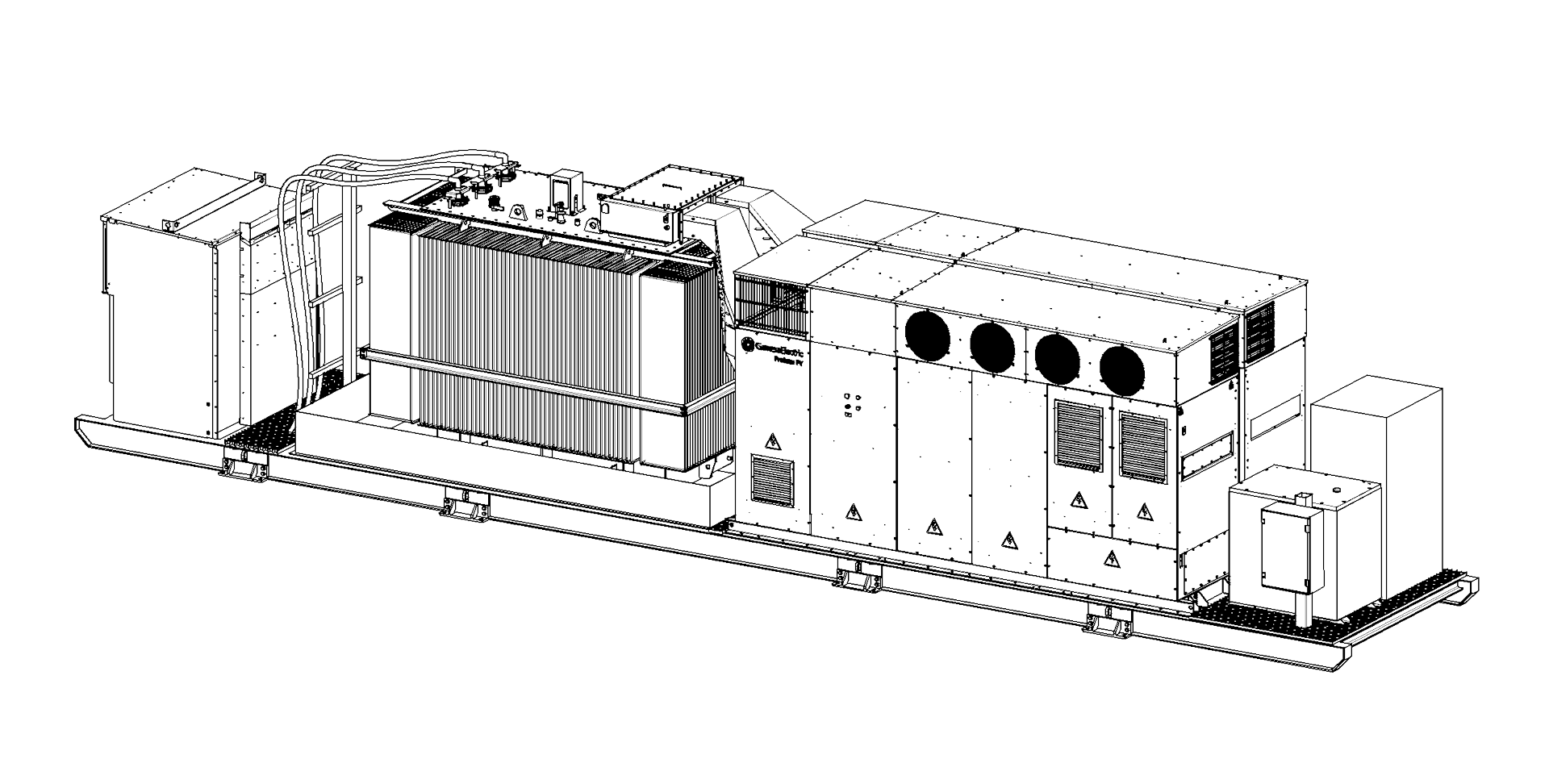

IEC version
2 Inverters

IEC version
1 Inverter

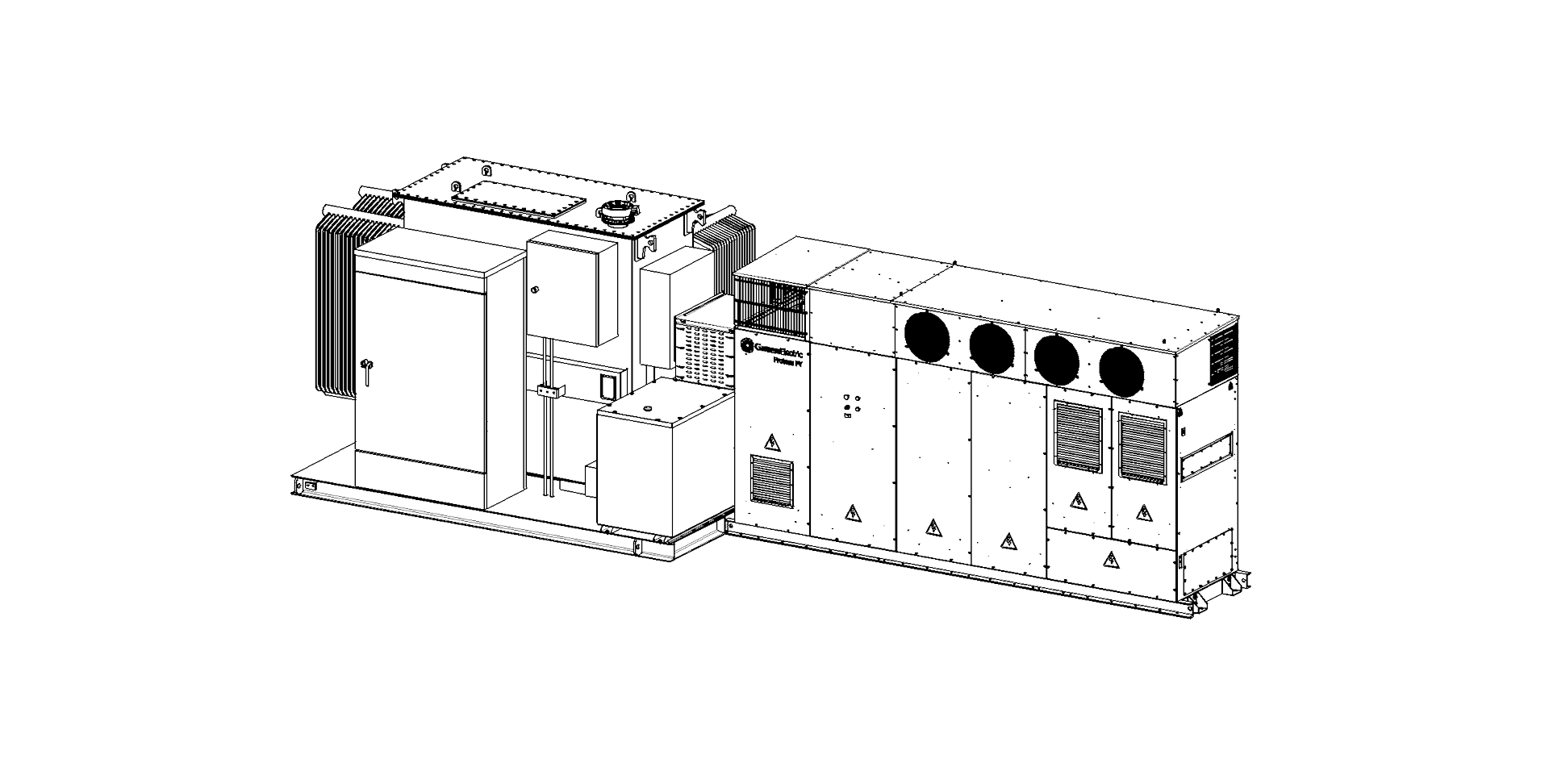

UL version
1 Inverter

Standards/Directives(5)

  • IEC 62109-1
  • IEC 60529
  • IEC 62109-2
  • IEC 61727
  • IEC 61000-6-2/4
  • NTS 631 v1.1  SENP, v2.1 SEPE
  • IEEE 1547
  • UL 1741-SA
  • EN 55011
  • CSA C22.2
  • IEC 62920
  • NEC 2020
  • EN 50530
  • CEA 2007
  • IEC 62116
  • Rule 14, Rule 21
  • IEC 61683
  • PRC 024
  • IEEE 519
  • UL 62109-1

(1)Consult Gamesa Electric for a specific configuration
(2)With derating from 40ºC [104ºF]
(3)Up to 4,000m [13,123 ft] with derating as optional
(4)UL variant only available for 1-PV Inverter based configuration
(5)Consult Gamesa Electric for other Standards/Directives
(6)UL version: Padmounted Dyn (without external switchgear)

Standards/Directives(5)

  • IEC 62109-1
  • IEC 60529
  • IEC 62109-2
  • IEC 61727
  • IEC 61000-6-2/4
  • NTS 631 v1.1 SENP, v2.1 SEPE
  • IEEE 1547
  • UL 1741-SA
  • EN 55011
  • CSA C22.2
  • IEC 62920
  • NEC 2020
  • EN 50530
  • CEA 2007
  • IEC 62116
  • Rule 14, Rule 21
  • IEC 61683
  • PRC 024
  • IEEE 519
  • UL 62109-1

(1)Consult Gamesa Electric for a specific configuration
(2)With derating from 40ºC [104ºF]
(3)Consult P-Q chart
(4)UL variant only available for 1-PV Inverter based configuration
(5)Consult Gamesa Electric for other Standards/Directives
(6)UL version: Padmounted Dyn (without external switchgear)
