New Gamesa Electric Proteus PV Inverters

High-power PV Inverter family

Gamesa Electric Proteus PV Inverters

Maximum energy and versatility for utility-scale projects

Better LCoE

Compact design which allows 2-inverter solution of up to 9400 kVA in a standard 40 ft skid, achieving overall cost reduction by using less
PV station units per project.

Design with best-in-class component that guarantees less probability of failure and therefore less operation cost (materials and workforce).

Market leading inverter efficiency of 99.4%.

Reliability

Smart liquid/air CoolBrid cooling system that allows critical components to work at temperature level far below the limit, guaranteeing product life span.

Tier I supliers for critical components (power semiconductors, capacitors, inductances and control cards) with best-in-class MTBF values.

“Easy to support” concept, with heavy components in removable trays, reducing maintenance and repair time (MTTR).

Grid integration

An extensive list of grid-codes compliance, including the most demanding ones, such as Germany, Mexico, Jordan, South Africa and more.

Full operating range reactive power supply for both day and night operation through the so-called Statcom mode.

Non-characteristic harmonics cancellation over distorted and unbalanced grids (weak grids).

Higher yield

High DC/AC ratio (up to 200%) to be prepared for bifacial modules, achieving higher production values.

Enhanced MPPT algorithm that provides outstanding MPPT efficiency values at static and dynamic states.

More yield even in challenging sites: operating up to 55ºC (up to 3.6% more energy production) and 2000 m (6561 ft) without derating.

Coolbrid cooling system

Configurations

Available to fit any customers' needs

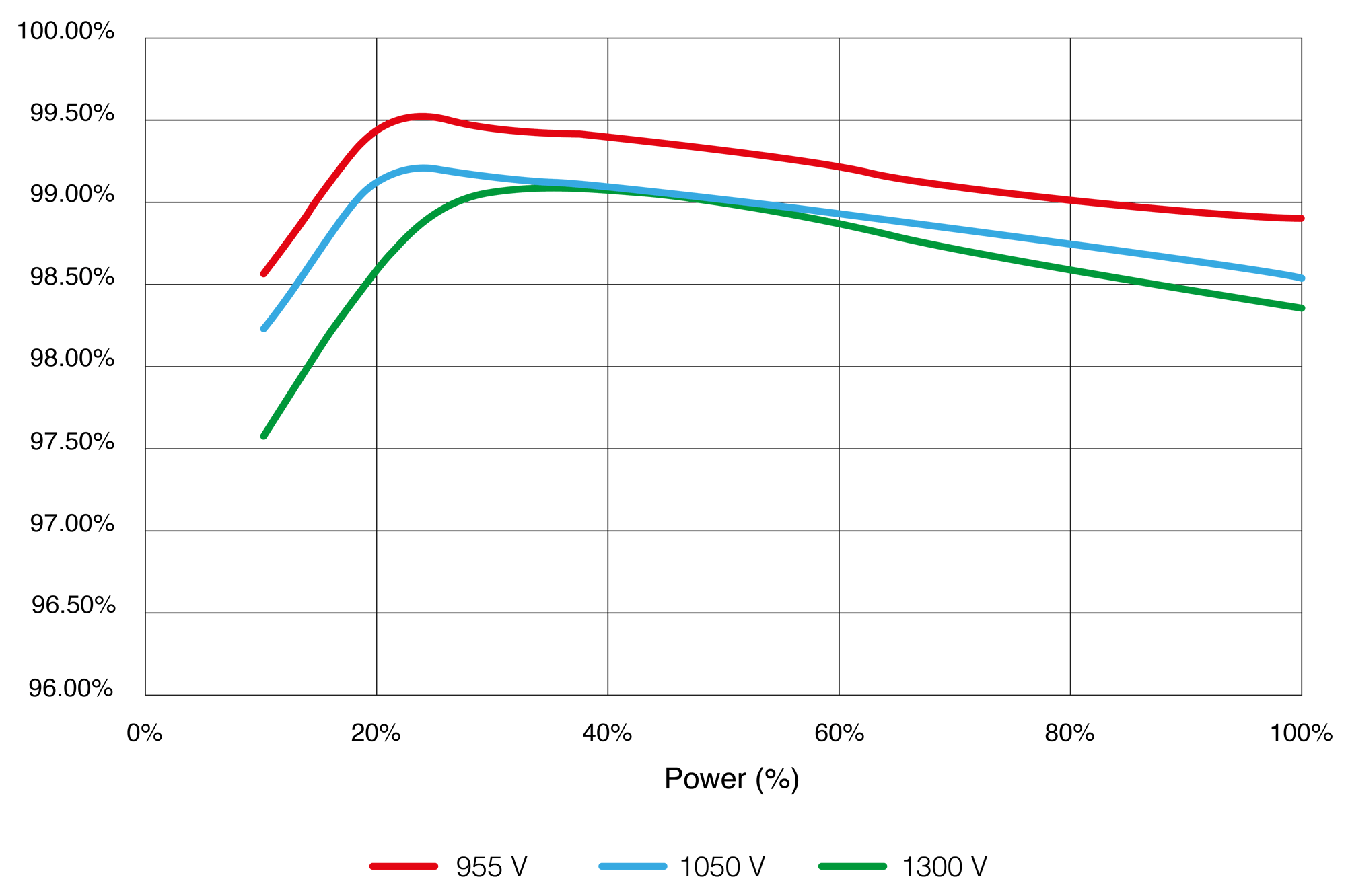

Efficiency

Configurations Up to 4700 kVA

Download Data Sheet

Outstanding set of inverter features to increase PV plant energy production and yield, highlighting:
- Record breaking inverter maximum electrical efficiency with a value of 99.45%, thanks to CoolBrid cooling system.
  - Enhanced MPPT efficiency (algorithm) over static and dynamic conditions.
  - Extended MPPT range to increase energy production, especially at high irradiance environments.
- High DC-AC ratio values to be ready for bifacial module technology.

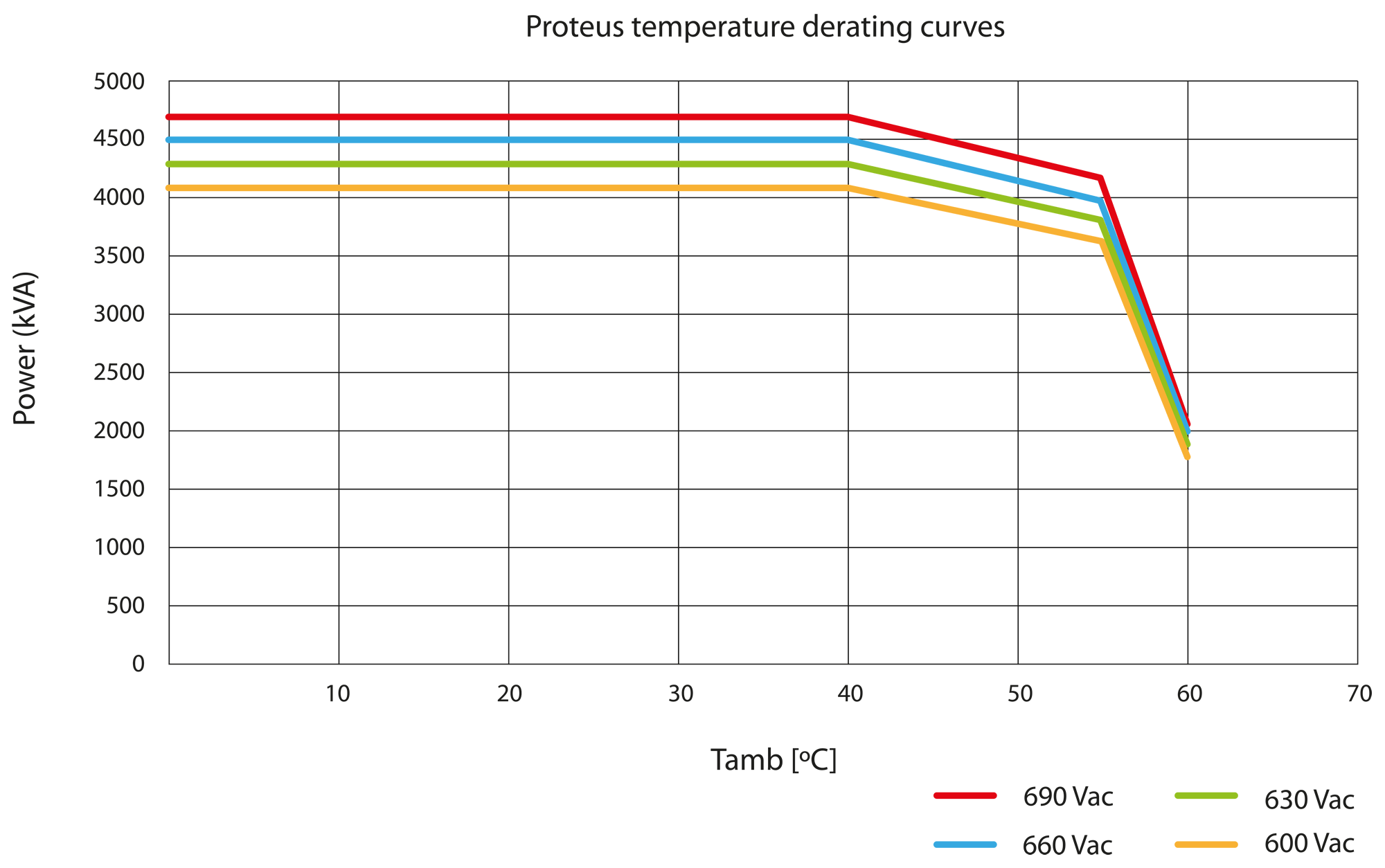

- Many variants (with improved power derating curve) to maximize energy production.

Reliability is fundamental part of Gamesa Electric DNA and our products.
- CoolBrid advanced cooling system to assure correct lifespan of critical components.
- Prepared for harsh conditions:
  - Outdoor design IP55 Class 1 & NEMA 3R
  - Up to 60ºC operating
  - Water + Air Cooling System
  - Better for dusty environment
  - Selective Cooling
  - Continuous Temp. monitoring
  - H <= 2000 m
- Tier I suppliers:
  - Tier I suppliers for main components
  - Field-Proven Components: CCU
  - Control Unit (CCU) MTBF: 40 years (over a 2.000 units population*)
    * Currently there are more than 6500 units in operation (G5x, G10x and PV Inverters). Study has been carried out on 2.000 units and more than 40 million operating hours.
- Easy O&M (“Design to Maintain”):
  - Easy Access to main components
  - Easy to Maintain
  - Low MTTR

Extensive know-how and experience on power electronics grid integration embedded on our products.
- Best in market current THD performance with values lower than 1%.
- Enhanced reactive power capabilities (P-Q curves, “Statcom” mode, Q at night).
- Vast experience on grid-code fulfilment all over the world with a set of capabilities and performances on PV Controller.
- Suitable for weak grids with features such as Selective Harmonic Cancellation (SHC).

	GAMESA ELECTRIC PROTEUS PV 4100	GAMESA ELECTRIC PROTEUS PV 4300	GAMESA ELECTRIC PROTEUS PV 4500	GAMESA ELECTRIC PROTEUS PV 4700
DC INPUT
DC Voltage Range(1)	835 - 1500 V	875 - 1500 V	915 - 1500 V	955 - 1500 V
DC Voltage Range MPPT(1)	835 - 1300 V	875 - 1300 V	915 - 1300 V	955 - 1300 V
Number of Power Modules	2, not galvanically isolated, 1 MPPT
Max. DC Current @40ºC [104ºF]	2 x 2500 A
Max. DC Current @50ºC [122ºF]	2 x 2313 A
Max. DC Current @55ºC [131ºF]	2 x 2220 A
Max. DC Current @60ºC [140ºF]	2 x 1110 A
Maximum Short-circuit Current, Isc PV	Up to 9000 A
Nr of DC Ports(1)	Max 24 fuse +/- monitored
Fuse Dimensions	125 A to 630 A
Max. Wire Cross Section per DC Input	2 x 400 mm2 - 800 AWG
Energy Production from	0.35% Pn approx.
AC OUTPUT
Number of phases	Three-phase
Nominal AC Power Total @40ºC [104ºF]	4095 kVA	4299 kVA	4504 kVA	4709 kVA
Nominal AC Power Total @50ºC [122ºF]	3790 kVA	3979 kVA	4169 kVA	4358 kVA
Nominal AC Power Total @55ºC [131ºF]	3637 kVA	3819 kVA	4001 kVA	4183 kVA
Nominal AC Power Total @60ºC [140ºF]	1819 kVA	1910 kVA	2001 kVA	2091 kVA
Maximum AC Current @40ºC [104ºF]	3940 Arms
Nominal AC Voltage(1)	600 Vrms	630 Vrms	660 Vrms	690 Vrms
Nominal Voltage Allowance Range(1)	+/-15%
Frequency Range(1)	50/60 Hz (+ 6% / -7%)
THD of AC Current	< 1% @Sn
Power Factor Range (3)	0 (lagging) - 1 - 0 (leading)
Max. Wire Cross Section per AC Output	6 x 400 mm2 - 800 AWG
PERFORMANCE
Max. Efficiency	99.45%
Euro Efficiency	99.24%
CEC Efficiency	99.02%	99.07%	99.11%	99.14%
Stand-by Power Consumption	< 200 W

GENERAL DATA
Temperature Range - Operation(2)	-20ºC / +60ºC [-4ºF / +140ºF]
Maximum Altitude(3)	< 2,000 m [6,561 ft] (w/o derating)
Cooling System	Liquid & forced air
Relative Humidity	4% – 100% (w/o condensation)
Protection Class	IP55 class 1, NEMA3R
Dimensions (W/H/D)	4,325 x 2,250 x 1,022 mm [170.3” x 88.5” x 40.2”]
Weight	4,535 kg [10,000 lb]
AC PROTECTIONS
AC Side Disconnection & Short-circuit Current Protection	Two motorized AC circuit breakers - one per each power module
AC Overvoltage Protection	Type 1 + 2 SPD
Anti-islanding	Included (SW)
Grid Voltage Fluctuations (LVRT, HVRT)(1)	Included (SW)
Frequency Failure	Included (SW)
DC PROTECTIONS
DC Disconnection	Two motorized DC switches (on-load) - one per each power module
DC Short-circuit Protection	DC fuses
DC Over-voltage Protection	Type 1 + 2 SPD
Reverse Polarity Detection	Included
DC Ground Fault and Insulation Detection	Included
OTHER PROTECTIONS
Over-temperature Protection	Included
Emergency Push Button	Included
Low Temperature Kit up to -30ºC [-22ºF]	Optional
Enhanced corrosion protection	Optional
COMMUNICATIONS
Control(1)	Modbus TCP/IP
Monitoring(1)	Modbus TCP/IP
Webserver	Included

Standards/Directives⁽⁴⁾

⁽¹⁾ Consult Gamesa Electric for a specific configuration
⁽²⁾ With derating from 40ºC [104ºF]
⁽³⁾ Up to 4,000m [13,123 ft] with derating as optional
⁽⁴⁾ Consult Gamesa Electric for other Standards/Directives
