New Gamesa Electric Proteus PCS-E Stations

Energy Storage Solutions

Maximum efficiency and compactness for utility scale energy storage projects

Gamesa Electric Proteus PCS-E Stations

Plug & Play MV Solutions

Specifications
better

Better LCoS

Compact design that achieves a high power density obtaining overall cost reduction by using less PCS Station units per project.

Design with best-in-class components that guarentees less probability of failure and therefore less operation cost (materials and workforce).

Market leading PCS-E efficiency of 99.45%.

reduction

High safety with minimum CAPEX

Safety embedded in the design through direct communication with the associated battery system.

Less units needed per project, which results in lower equipment cost.

Reduced costs of transportation, offloading and site preparation.

puzzle

Flexibility

Wide range of configurations with outputs from 2550 to 9400 kVA and IEC & UL certifications.

Double power module topology for two independent battery connections per PCS-E allowing for much lower DC shot-circuit currents and increased system availability.

Battery agnostic design to accommodate different battery technologies, including: li-ion, lead-acid, flow and others.

link

Plug & play

Fully assembled and tested MV solution.

Quick installation in field, reducing installation time and costs.

Easy to support and mantain.

Successfully operating in extreme locations

IEC version

2 x PCS-E

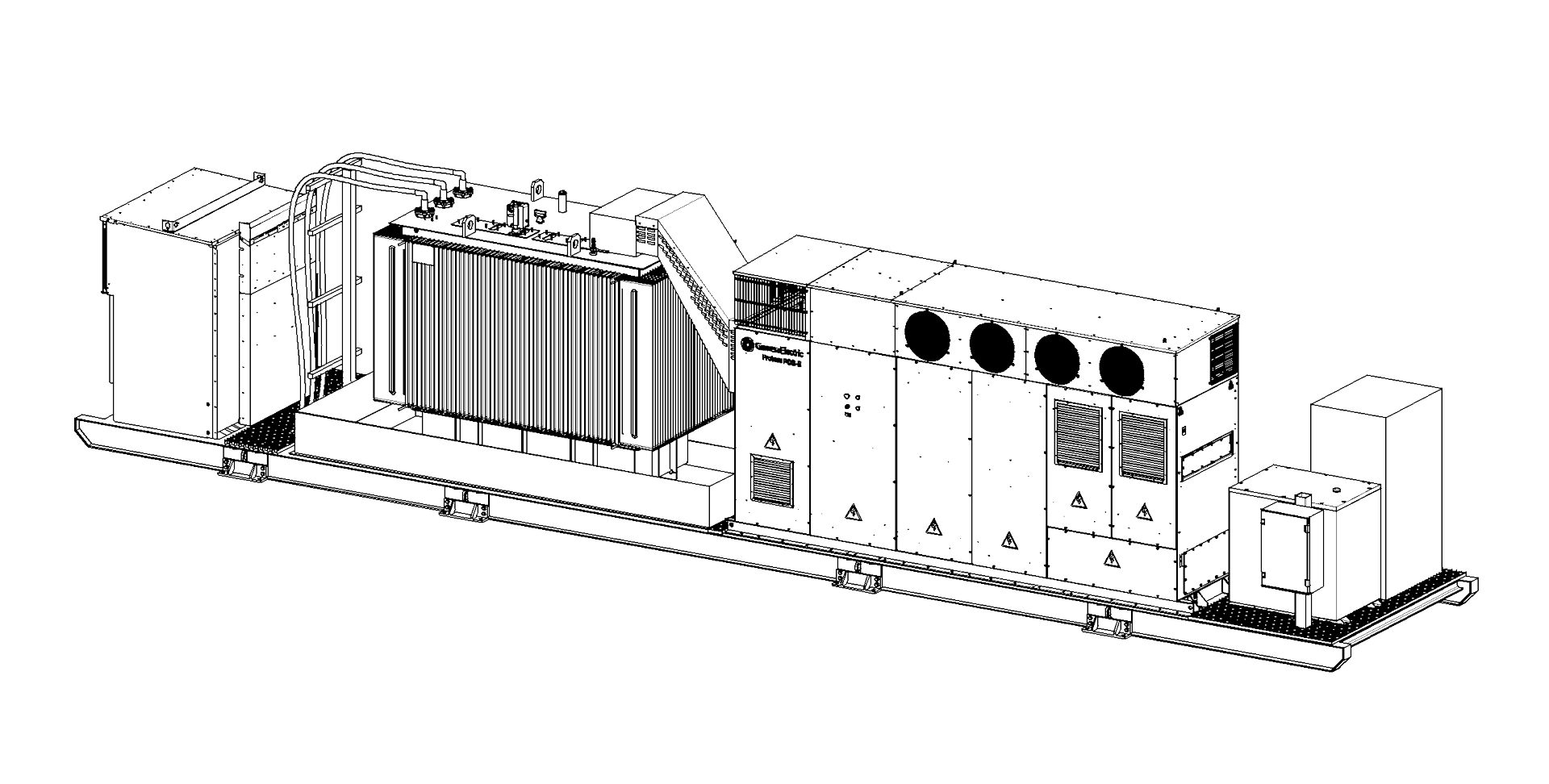

IEC version

1 x PCS-E

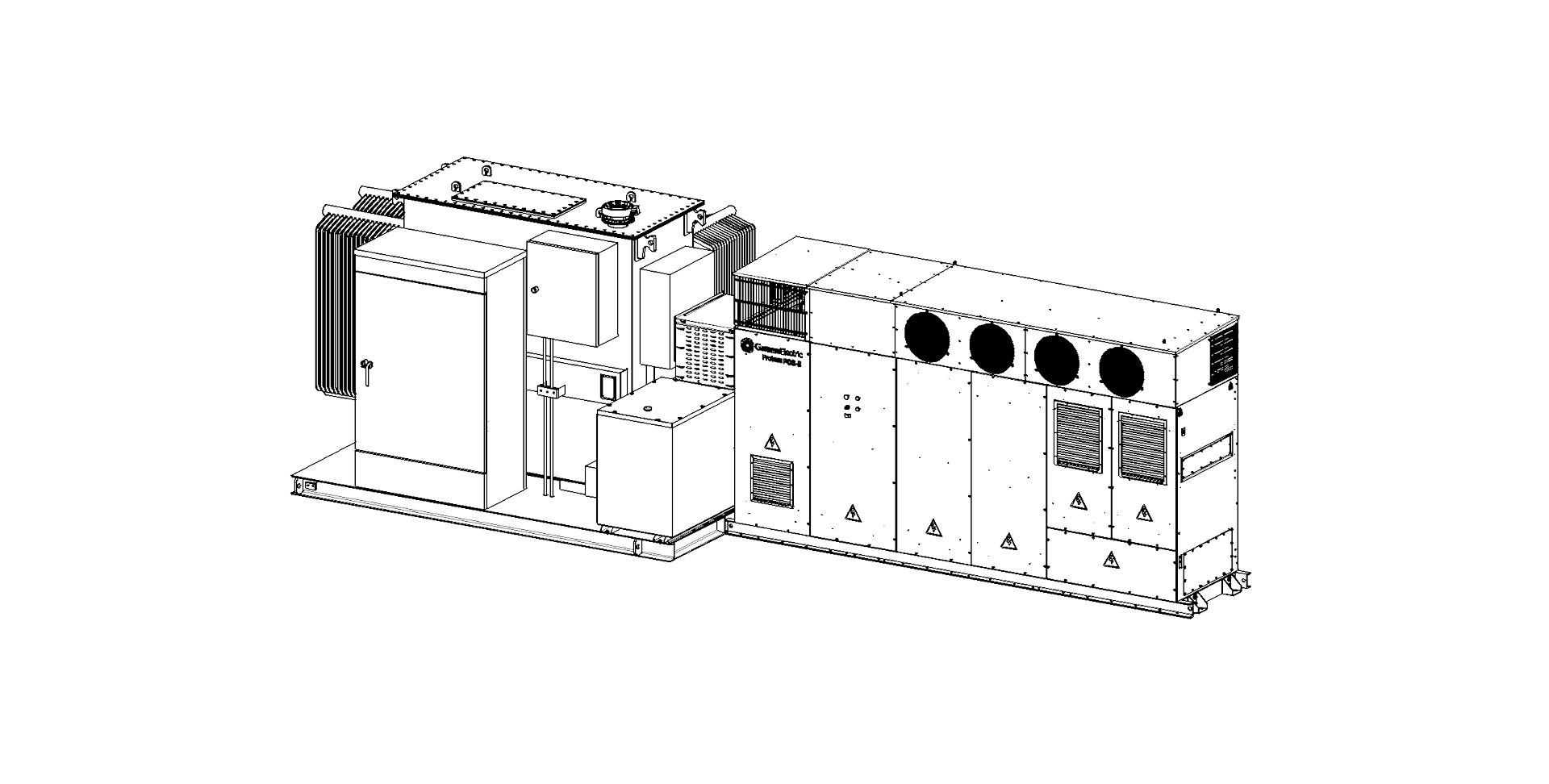

UL version

1 x PCS-E

Configurations

Available to fit any customers' needs

The Gamesa Electric Proteus PCS-E Stations combine maximum power with large flexibility for best LCoS

Download Data Sheet

HIGH POWER

GAMESA ELECTRIC PROTEUS PCS-E Station1 x Proteus PCS 4000E1 x Proteus PCS 4180E1 x Proteus PCS 4360E1 x Proteus PCS 4600E1 x Proteus PCS 4910E(7)1 x Proteus PCS 5150E(7)
DC CONNECTION
DC Minimum Voltage(1)934 V976 V1018 V1075 V1146 V1202 V
DC Maximum Voltage1473 V1500 V1500 V1500 V1500 V1500 V
Number of Independent Power Modules2, not galvanically isolated
Max. DC Current @40ºC [104ºF]2 x 2227 A
Number of Fused DC Inputs(2)Up to 6+ & 6-
Max. DC short-circuit withstanding capability2 x 250kA, 3ms Double DC bus configuration
1 x 250kA, 3ms Single DC bus configuration
AC CONNECTION
Number of PhasesThree-phase
Nominal AC Power Total @25ºC [77ºF]Max. Vdc4250 kVA4446 kVA4639 kVA4897 kVA5219 kVA5477 kVA
Nominal AC Power Total @40ºC [104ºF]Max. Vdc4000 kVA4183 kVA4365 kVA4607 kVA4910 kVA5153 kVA
Nominal AC Power Total @40ºC [104ºF]@1300VDC4298 kVA4494 kVA4689 kVA4950 kVA5275 kVA5535 kVA
Nominal AC Voltage, LV side(2)660 Vrms690 Vrms720 Vrms760 Vrms810 Vrms850 Vrms
Nominal AC Voltage, MV side(2)Up to 34.5kV
Nominal Voltage Allowance Range(2)+/-10%
Frequency Range(2)47.5 - 52.5/57 - 63.5 Hz
THD of AC Current< 1% @Sn
Power Factor Range(3)0 (lagging) - 1 - 0 (leading)
PROTECTION DEVICES
DC ConnectionMotorized disconnectors, Overvoltage protection (Type 1 + 2 SPD), Reverse polarity detection, DC ground fault and insulation detection, fast fuses (optional)
AC MV ConnectionProtection switchgear / Fuses Pad mounted version
Over-temperature ProtectionIncluded
Emergency Push ButtonIncluded
COMPONENTS PROTEUS PCS-E STATION
PCS-E1 x Proteus PCS 4000E1 x Proteus PCS 4180E1 x Proteus PCS 4360E1 x Proteus PCS 4600E1 x Proteus PCS 4910E1 x Proteus PCS 5150E
Transformer(2)(6)Dy11y11 KNAN
Switchgear(2)(6)0L1V / 1L1V / 2L1V up to 38 kV
Custom Auxiliary Transformer(2)Optional
Others(2)Auxiliary cabinet
COMMUNICATIONS
Control(2)Modbus TCP / IP
Monitoring(2)Modbus TCP / IP
WebserverIncluded
OTHER FEATURES
Temperature Range - Operation-20ºC / +60ºC [-4ºF / +140ºF]
Relative Humidity4% - 100% (without condensation)
Maximum Altitude (without derating)2,000 m [6561 ft]
Dimensions W x H x D (IEC / UL version)(4)11,800 x 2,600 x 2,100 mm / 30 x 8.5 x 8.6 ft
Protection(5)IP54
Cooling SystemLiquid & forced air
OPTIONALS(2)
Low Temperature Kit to up to -30ºC [-22ºF]
Factory-fitted DC fuses
Factory-fitted joint DC inputs
Enhanced corrosion protection
Motorized MV Switchgear
UPS
Custom Auxiliary Transformer
Seismic Reinforcement

Standards/Directives(5)

  • IEC 62109-1
  • IEC 62109-2
  • IEC 61000-6-2
  • IEEE 1547
  • EN 55011 / CISPR11:2019
  • IEC 62116
  • UL 1741-SB
  • CSA C22.2 No 107.1
  • NFPA 70:2020
  • IEC 62477-1:2022
  • IEEE C57
  • IEC 60076

LOW POWER

GAMESA ELECTRIC PROTEUS PCS-E Station1 x Proteus PCS 2420E1 x Proteus PCS 2910E1 x Proteus PCS 3150E1 x Proteus PCS 3630E1 x Proteus PCS 3810E
DC Connection
DC Minimum Voltage(1)566 V679 V736 V849 V891 V
DC Maximum Voltage1238 V1310 V1347 V1418 V1445 V
Number of Independent Power Modules2, not galvanically isolated
Max. DC Current @40ºC [104ºF]2 x 2227 A
Number of Fused DC Inputs(2)Up to 6+ & 6-
Max. DC short-circuit withstanding capability2 x 250kA, 3ms Double DC bus configuration
1 x 250kA, 3ms Single DC bus configuration
AC Connection
Number of PhasesThree-phase
Nominal AC Power Total @25ºC [77ºF]Max. Vdc2577 kVA3093 kVA3351 kVA3866 kVA4059 kVA
Nominal AC Power Total @40ºC [104ºF]Max. Vdc2425 kVA2910 kVA3152 kVA3637 kVA3819 kVA
Nominal AC Power Total @40ºC [104ºF]@1300VDCN/A3127 kVA3387 kVA3908 kVA4103 kVA
Nominal AC Voltage, LV side(2)400 Vrms480 Vrms520 Vrms600 Vrms630 Vrms
Nominal AC Voltage, MV side(2)Up to 34.5kV
Nominal Voltage Allowance Range(2)+/-10%
Frequency Range(2)46.5 - 53 / 57 - 63.5 Hz
THD of AC Current< 1% @Sn
Power Factor Range(3)0 (lagging) - 1 - 0 (leading)
PROTECTION DEVICES
DC ConnectionMotorized disconnectors, Overvoltage protection (Type 1 + 2 SPD), Reverse polarity detection, DC ground fault and insulation detection, fast fuses (optional)
AC MV ConnectionProtection switchgear / Fuses Pad mounted version
Over-temperature ProtectionIncluded
Emergency Push ButtonIncluded
COMPONENTS PROTEUS PCS-E STATION
PCS-E1 x Proteus PCS 2420E1 x Proteus PCS 2910E1 x Proteus PCS 3150E1 x Proteus PCS 3630E1 x Proteus PCS 3810E
Transformer(2)(6)Dy11y11 KNAN
Switchgear(2)(6)0L1V / 1L1V / 2L1V up to 38 kV
Custom Auxiliary Transformer(2)Optional
Others(2)Auxiliary cabinet
COMMUNICATIONS
Control(2)Modbus TCP / IP
Monitoring(2)Modbus TCP / IP
WebserverIncluded
OTHER FEATURES
Temperature Range - Operation-20ºC / +60ºC [-4ºF / +140ºF]
Relative Humidity4% - 100% (without condensation)
Maximum Altitude (without derating)2,000 m [6,561 ft]
Dimensions W x H x D (IEC / UL version)(4)11,800 x 2,600 x 2,100 mm / 30 x 8.5 x 8.6 ft
Protection(5)IP54
Cooling SystemLiquid & forced air
OPTIONALS(2)
Low Temperature Kit to up to -30ºC [-22ºF]
Factory-fitted DC fuses
Factory-fitted joint DC inputs
Enhanced corrosion protection
Motorized MV Switchgear
UPS
Custom Auxiliary Transformer
Seismic Reinforcement

Standards/Directives(5)

  • IEC 62109-1
  • IEC 62109-2
  • IEC 61000-6-2
  • IEEE 1547
  • EN 55011 / CISPR11:2019
  • IEC 62116
  • UL 1741-SB
  • CSA C22.2 No 107.1
  • NFPA 70:2020
  • IEC 62477-1:2022
  • IEEE C57
  • IEC 60076

(1)At nominal AC voltage. Consult Gamesa Electric for other options
(2)Consult Gamesa Electric for a specific configuration
(3)Consult P-Q chart
(4)UL variant only available for 1-PCS based configuration
(5)Consult Gamesa Electric for more details
(6)UL version: Padmounted Dyn (without external switchgear)
(7)Consult Gamesa Electric on the application for this model

HIGH POWER

Gamesa Electric Proteus PCS-E Station2 x Proteus PCS 4000E2 x Proteus PCS 4180E2 x Proteus PCS 4360E2 x Proteus PCS 4600E2 x Proteus PCS 4910E(6)2 x Proteus PCS 5150E(6)
DC CONNECTION
DC Minimum Voltage(1)934 V976 V1018 V1075 V1146 V1202 V
DC Maximum Voltage1473 V1500 V1500 V1500 V1500 V1500 V
Number of Independent Power Modules per PCS-E / Total2-abr
Max. DC Current @40°C [104°F]4 x 2500 A
Number of Fused DC Inputs per PCS-E / Total(2)Up to 12+ & 12-
Max. DC short-circuit withstanding capability4 x 250kA, 3ms Double bus configuration
2 x 250kA, 3ms Single bus configuration
AC CONNECTION
Number of PhasesThree-phase
Nominal AC Power Total @25ºC [77ºF]Max. Vdc8500 kVA8892 kVA9278 kVA9794 kVA10438 kVA10954 kVA
Nominal AC Power Total @40ºC [104ºF], Max. Vdc8000 kVA8366 kVA8730 kVA9214 kVA9820 kVA10306 kVA
Nominal AC Power Total @40ºC [104ºF], 1300VDC8596 kVA8988 kVA9378 kVA9900 kVA10550 kVA11070 kVA
Nominal Voltage AC LV Allowance Range(2)2 x 660 Vrms2 x 690 Vrms2 x 720 Vrms2 x 760 Vrms2 x 810 Vrms2 x 850 Vrms
Nominal Voltage AC MV Range(2)Up to 34.5kV
Nominal Voltage allowance (2)+/-10%
Frequency Range(2)47.5 - 52.5/57 - 63.5 Hz
THD of AC Current< 1% @Sn
Power Factor Range(3)0 (lagging) - 1 - 0 (leading)
PROTECTION DEVICES
DC ConnectionMotorized disconnectors, Overvoltage protection (Type 1 + 2 SPD), Reverse polarity detection, DC ground fault and insulation detection
AC MV ConnectionProtection switchgear / Fuses Pad mounted version
Over-temperature ProtectionIncluded
Emergency Push ButtonIncluded
COMPONENTS PROTEUS PCS-E STATION
PCS-E2 x Proteus PCS 4000E2 x Proteus PCS 4180E2 x Proteus PCS 4360E2 x Proteus PCS 4600E2 x Proteus PCS 4910E2 x Proteus PCS 5150E
Transformer(2)Dy11y11 KNAN
Switchgear(2)0L1V / 1L1V / 2L1V up to 38 kV
Custom Auxiliary Transformer(2)Optional
Others(2)Auxiliary cabinet
COMMUNICATIONS
Control(2)Modbus TCP / IP
Monitoring(2)Modbus TCP / IP
WebserverIncluded
OTHER FEATURES
Temperature Range - Operation-20ºC / +60ºC [-4ºF / +140ºF]
Relative Humidity4% - 100% (without condensation)
Maximum Altitude (without derating)2,000 m [6,561 ft]
Dimensions W x H x D (4)11,800 x 2,600 x 2,100 mm / 30 x 8.5 x 8.6 ft
Protection(5)IP54
Cooling SystemLiquid & forced air
OPTIONALS(2)
Low Temperature Kit to up to -30ºC [-22ºF]
Factory-fitted DC fuses
Factory-fitted joint DC inputs
Enhanced corrosion protection
Motorized MV Switchgear
UPS
Custom Auxiliary Transformer
Seismic Reinforcement

Standards/Directives(5)

  • IEC 62109-1
  • IEC 62109-2
  • IEC 61000-6-2
  • IEEE 1547
  • EN 55011 / CISPR11:2019
  • IEC 62116
  • UL 1741-SB
  • CSA C22.2 No 107.1
  • NFPA 70:2020
  • IEC 62477-1:2022
  • IEEE C57
  • IEC 60076

LOW POWER

GAMESA ELECTRIC PROTEUS PCS-E Station2 x Proteus PCS 2420E2 x Proteus PCS 2910E2 x Proteus PCS 3150E2 x Proteus PCS 3630E2 x Proteus PCS 3810E
DC CONNECTION
DC Minimum Voltage(1)566 V679 V736 V849 V819 V
DC Maximum Voltage1238 V1310 V1347 V1418 V1445 V
Number of Independent Power Modules per PCS-E / Total2 / 4
Max. DC Current @40°C [104°F]4 x 2500 A
Number of Fused DC Inputs per PCS-E / Total(2)Up to 12+ & 12-
Max. DC short-circuit withstanding capability4 x 250kA, 3ms Double bus configuration
2 x 250kA, 3ms Single bus configuration
AC CONNECTION
Number of PhasesThree-phase
Nominal AC Power Total @25ºC [77ºF]Max. Vdc5154 kVA6186 kVA6702 kVA7732 kVA8118 kVA
Nominal AC Power Total @40ºC [104ºF], Max. Vdc4850 kVA5820 kVA6304 kVA7274 kVA7638 kVA
Nominal AC Power Total @40ºC [104ºF], 1300VDCN/A6252 kVA6774 kVA7816 kVA8206 kVA
Nominal Voltage AC LV Allowance Range(2)2 x 400 Vrms2 x 480 Vrms2 x 520 Vrms2 x 600 Vrms2 x 630 Vrms
Nominal Voltage AC MV Range(2)Up to 34.5kV
Nominal Voltage allowance (2)+/-10%
Frequency Range(2)47.5 - 52.5/57 - 63.5 Hz
THD of AC Current< 1% @Sn
Power Factor Range(3)0 (lagging) - 1 - 0 (leading)
PROTECTION DEVICES
DC ConnectionMotorized disconnectors, Overvoltage protection (Type 1 + 2 SPD), Reverse polarity detection, DC ground fault and insulation detection
AC MV ConnectionProtection switchgear / Fuses Pad mounted version
Over-temperature ProtectionIncluded
Emergency Push ButtonIncluded
COMPONENTS PROTEUS PCS-E STATION
PCS-E2 x Proteus PCS 2420E2 x Proteus PCS 2910E2 x Proteus PCS 3150E2 x Proteus PCS 3630E2 x Proteus PCS 3810E
Transformer(2)Dy11y11 KNAN
Switchgear(2)0L1V / 1L1V / 2L1V up to 36 kV
Custom Auxiliary Transformer(2)Optional
Others(2)Auxiliary cabinet
COMMUNICATIONS
Control(2)Modbus TCP / IP
Monitoring(2)Modbus TCP / IP
WebserverIncluded
OTHER FEATURES
Temperature Range - Operation-20ºC / +60ºC [-4ºF / +140ºF]
Relative Humidity4% - 100% (without condensation)
Maximum Altitude (without derating)2,000 m [6,561 ft]
Dimensions W x H x D (4)11,800 x 2,600 x 2,100 mm / 30 x 8.5 x 8.6 ft
Protection(5)IP54
Cooling SystemLiquid & forced air
OPTIONALS(2)
Low Temperature Kit to up to -30ºC [-22ºF]
Factory-fitted DC fuses
Factory-fitted joint DC inputs
Enhanced corrosion protection
Motorized MV Switchgear
UPS
Custom Auxiliary Transformer
Seismic Reinforcement

Standards/Directives(5)

  • IEC 62109-1
  • IEC 62109-2
  • IEC 61000-6-2
  • IEEE 1547
  • EN 55011 / CISPR11:2019
  • IEC 62116
  • UL 1741-SB
  • CSA C22.2 No 107.1
  • NFPA 70:2020
  • IEC 62477-1:2022
  • IEEE C57
  • IEC 60076

(1)At nominal AC voltage. Consult Gamesa Electric for other options
(2)Consult Gamesa Electric for a specific configuration
(3)Consult P-Q chart
(4)UL variant only available for 1-PCS based configuration
(5)Consult Gamesa Electric for more details
(6)Consult Gamesa Electric on the application for this model

Power Electronics

Proteus PV Inverters

Proteus PV Stations

Proteus PCS-E Battery Inverters

Proteus PCS-E Stations

Orchestra

DFIG Wind Converter

Motors & Generators

Hydroelectric Generators

Marine Propulsion

Alternators for Gensets

Wind Generators

News

See all news

Do you need more information?

Our team is at your disposal

Contact us
